| SYTLE NO. | TYPE | DIMENSION | Fishplate Size | Screws | Clips & Screws |
| TK3 | HOLLOW | 75*55*10mm | 220*72*40mm | M8*25 | 5K M10*45 |
| TK3A | HOLLOW | 78*60*16.4mm | 200*78*50mm | M10*35 | 5K M10*45 |
| TK5 | HOLLOW | 87*60*16.4mm | 400*88*59mm | M12*40 | 5K M12*45 |
| TK5A | HOLLOW | 78*60*16.4mm | 200*78*50mm | M10*35 | 5K M12*45 |
| T45/A | COLD-DRAWN | 45*45*5mm | 160*50*8mm | M8*25 | T1/5K M10*45 |

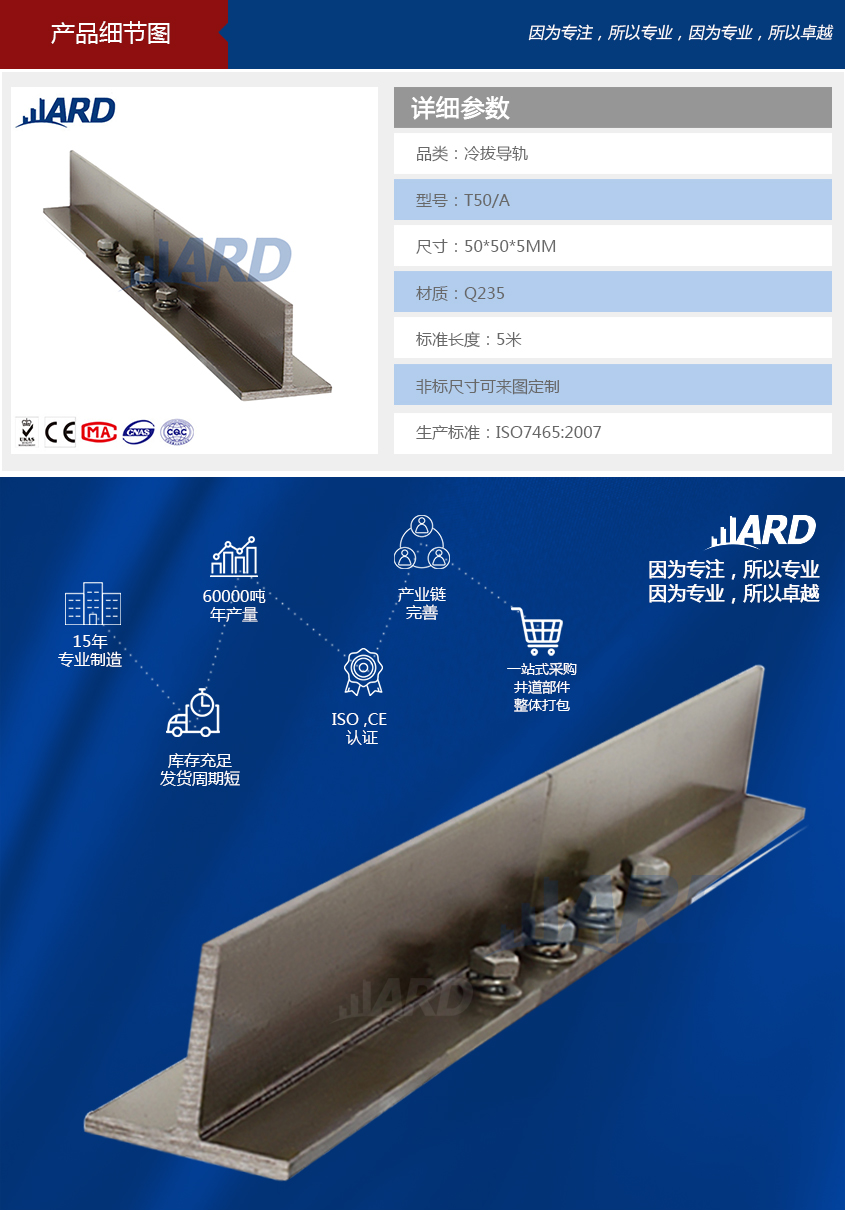

| T50/A | COLD-DRAWN | 50*50*5mm | 200*50*8mm | M8*25 | T1/5K M10*45 |
| T65/A | COLD-DRAWN | 65*54*7.9mm | 160*65*8mm | M10*25 | T1/5K M10*45 |
| T70/A | COLD-DRAWN | 70*65*9mm | 250*70*10mm | M12*40 | T2/5K M10*45 |
| T70-1/B | MACHINED | 70*65*10mm | 250*70*10mm | M12*40 | T2/5K M10*45 |
| T75-3/B | MACHINED | 75*62*10mm | 250*70*10mm | M12*40 | 8K M10*45 |
| T78/B | MACHINED | 78*56*10mm | 250*70*10mm | M12*40 | 8K M10*45 |
| T82/B | MACHINED | 82.5*68.25*9mm | 216*80*10mm | M12*40 | 13K M12*45 |
| T82-3/B | MACHINED | 82*62*16mm | 216*80*10mm | M12*40 | 13K M12*45 |
| T89-1/B | MACHINED | 89*62*16mm | 305*90*13mm | M12*40 | 13K M12*45 |
| T89/B | MACHINED | 89*62*16mm | 305*90*13mm | M12*40 | T3/13K M12*45 |
| T90/B | MACHINED | 90*75*16mm | 305*90*13mm | M12*40 | T3/13K M12*45 |
| T114/B | MACHINED | 114*89*16mm | 305*114*17mm | M16*45 | 18K M16*60 |
| T127-1/B | MACHINED | 127*89*16mm | 305*127*17mm | M16*45 | 24K M16*75 |
| T127-2/B | MACHINED | 127*89*16mm | 305*127*17mm | M16*45 | 24K M16*75 |
| T140-1/B | MACHINED | 140*108*19mm | 380*140*25mm | M20*65 | 30K M18*80 |
| T140-2/B | MACHINED | 140*102*28.6mm | 380*140*25mm | M20*80 | 30K M18*80 |
